Introduction
The Engine Compression Ratio Calculator is one of the most useful free tools for anyone interested in automotive engineering, engine rebuilding, performance tuning, or vehicle maintenance. Compression ratio is a fundamental engine specification that affects combustion efficiency, power potential, torque, fuel requirements, thermal efficiency, and overall engine behavior.
Whether you are building a high-performance naturally aspirated engine, restoring a classic vehicle, rebuilding a motorcycle engine, designing a turbocharged setup, or simply learning how internal combustion engines work, understanding compression ratio is essential.
A compression ratio may look like a simple number such as 8.5:1, 9.5:1, 10.0:1, or 12.0:1, but that number represents a relationship between several important engine dimensions and volumes.
The final ratio can change when you replace:
- Pistons
- Cylinder heads
- Head gaskets
- Connecting rods
- Crankshafts
- Camshafts
- Engine blocks
- Intake systems
- Other combustion-related components
A free Engine Compression Ratio Calculator makes it much easier to evaluate these changes.
This article explains how compression ratio works, how to calculate it, how it influences horsepower and torque, how it affects fuel economy, and how engine builders can use a calculator to compare different engine configurations.
What Is Engine Compression Ratio?
Engine compression ratio is the relationship between the volume inside a cylinder when the piston is at Bottom Dead Center (BDC) and the volume remaining when the piston reaches Top Dead Center (TDC).
The basic formula is:
Compression Ratio = (Swept Volume + Clearance Volume) ÷ Clearance Volume
For example, suppose one cylinder has:
- Swept volume = 500 cc
- Clearance volume = 50 cc
Then:
Compression Ratio = (500 + 50) ÷ 50
Compression Ratio = 11:1
This means the total geometric cylinder volume at BDC is 11 times the clearance volume at TDC.
It does not mean that the engine always produces 11 times the cylinder pressure. Compression ratio is a geometric measurement, while actual cylinder pressure depends on many additional factors.
Why Compression Ratio Matters
Compression ratio is important because it influences the conditions under which combustion occurs.
Increasing compression ratio can potentially improve:
- Thermal efficiency
- Torque
- Power
- Throttle response
- Fuel efficiency
- Combustion efficiency
However, increasing compression also increases the engine’s sensitivity to abnormal combustion under certain conditions.
Therefore, compression ratio is always a balance between performance, efficiency, fuel quality, engine design, and reliability.
What Does a Free Engine Compression Ratio Calculator Do?
A free Engine Compression Ratio Calculator automates the mathematical process required to determine static compression ratio.
Depending on the calculator, you may enter:
- Bore diameter
- Stroke length
- Number of cylinders
- Combustion chamber volume
- Piston dish volume
- Piston dome volume
- Valve-relief volume
- Head-gasket thickness
- Head-gasket bore
- Deck clearance
The calculator then determines the cylinder’s swept volume and clearance volume and applies the compression-ratio formula.
This can save significant time compared with performing every calculation manually.
The Compression Ratio Formula
The fundamental equation is:
CR = (Vd + Vc) ÷ Vc
Where:
CR = Compression ratio
Vd = Swept volume
Vc = Clearance volume
Another way to express it is:
CR = Total Cylinder Volume at BDC ÷ Cylinder Volume at TDC
The two formulas represent the same relationship.
What Is Swept Volume?
Swept volume is the volume displaced by the piston as it travels from TDC to BDC.
For a cylindrical cylinder:
Swept Volume = π/4 × Bore² × Stroke
For example:
- Bore = 90 mm
- Stroke = 86 mm
Convert to centimeters:
- Bore = 9 cm
- Stroke = 8.6 cm
Then:
Swept Volume = 0.7854 × 9² × 8.6
The result is approximately:
548.5 cc per cylinder
If the engine has four cylinders:
548.5 × 4 = 2,194 cc
The engine therefore has approximately 2.2 liters of displacement.
What Is Clearance Volume?
Clearance volume is the volume remaining above the piston at TDC.
It can include several components:
- Combustion chamber volume
- Piston dish
- Piston dome
- Valve-relief volume
- Head-gasket volume
- Deck-clearance volume
This is one of the most important concepts when using an Engine Compression Ratio Calculator.
Two engines can have identical bore, stroke, and displacement but completely different compression ratios because their clearance volumes differ.
Combustion Chamber Volume
The combustion chamber is located in the cylinder head.
Manufacturers often specify chamber volume in cubic centimeters.
For example:
Combustion chamber = 55 cc
However, actual volume may differ from published specifications because of:
- Manufacturing tolerances
- Cylinder-head machining
- Resurfacing
- Valve-seat work
- Chamber modifications
For a serious engine build, actual chamber measurement is preferable.
Piston Volume and Compression Ratio
The piston crown can have a major effect on compression ratio.
There are three common configurations:
Flat-Top Piston
A relatively flat piston crown generally provides a small contribution to clearance volume, although valve-relief cuts may add volume.
Dish Piston
A recessed piston crown increases clearance volume and generally lowers compression ratio.
Dome Piston
A raised piston crown occupies space in the combustion chamber and generally reduces clearance volume, increasing compression ratio.
Piston Dish Example
Imagine an engine with a piston that has a:
5 cc dish
If the piston is replaced with one having:
15 cc dish
the clearance volume increases by approximately 10 cc.
If all other components remain unchanged, compression ratio decreases.
This is why piston specifications are essential when calculating compression.
Piston Dome Example
Now consider an engine with a domed piston.
Suppose the piston dome displaces:
8 cc
of combustion-chamber space.
The dome reduces the effective clearance volume.
Reducing clearance volume increases compression ratio.
However, piston-dome shape is also important for combustion quality and valve clearance.
A large dome is not automatically better for performance.
Valve Reliefs
Performance pistons often contain valve reliefs.
These allow the intake and exhaust valves to move closer to the piston without making contact.
Valve reliefs also affect piston volume.
Therefore, an accurate calculator should include their contribution when appropriate.
Head Gasket Volume
Head-gasket volume is frequently overlooked.
A head gasket occupies space between the cylinder head and engine block.
A simplified formula is:
Gasket Volume = π/4 × Gasket Bore² × Gasket Thickness
Suppose:
- Gasket bore = 90 mm
- Compressed thickness = 1 mm
Convert:
- Bore = 9 cm
- Thickness = 0.1 cm
Then:
Gasket Volume = 0.7854 × 9² × 0.1
Approximately:
6.36 cc
That additional volume can make a noticeable difference to compression ratio.
Why Gasket Thickness Matters
Changing head-gasket thickness changes clearance volume.
A thicker gasket:
Increases clearance volume
and generally:
Decreases compression ratio
A thinner gasket:
Decreases clearance volume
and generally:
Increases compression ratio
However, gasket thickness should never be selected only to manipulate compression. Sealing requirements and mechanical clearances must also be considered.
Deck Clearance
Deck clearance is the distance between the piston crown and the block deck when the piston reaches TDC.
If the piston sits below the deck, the space between the piston and deck contributes additional clearance volume.
For example:
0.8 mm deck clearance
creates more volume than:
0.2 mm deck clearance
Therefore, deck height should be included when a precise compression ratio is required.
How Deck Clearance Changes Compression
Suppose two identical engines have the same:
- Bore
- Stroke
- Piston
- Cylinder head
- Head gasket
But Engine A has:
0.2 mm deck clearance
and Engine B has:
0.8 mm deck clearance
Engine B will have greater clearance volume.
Therefore, Engine B will generally have a lower compression ratio.
This is why block machining and piston-deck measurements matter.
Complete Compression Ratio Example
Consider a hypothetical four-cylinder engine with:
- Bore = 90 mm
- Stroke = 86 mm
- Chamber = 50 cc
- Piston dish = 6 cc
- Gasket volume = 5 cc
- Deck volume = 2 cc
First calculate swept volume.
Bore:
9.0 cm
Stroke:
8.6 cm
Swept volume:
0.7854 × 9² × 8.6
Approximately:
548.5 cc
Now calculate clearance volume:
50 + 6 + 5 + 2 = 63 cc
Then:
CR = (548.5 + 63) ÷ 63
Approximately:
9.71:1
Therefore, the engine has approximately a 9.7:1 static compression ratio.
Compression Ratio and Horsepower
One of the most popular questions about compression ratio is whether increasing it increases horsepower.
In many naturally aspirated applications, increasing compression can increase power potential.
Higher compression can improve thermal efficiency and increase the pressure produced during combustion.
However, the result depends on the complete engine.
Horsepower is also influenced by:
- Airflow
- Cylinder-head design
- Camshaft
- Intake manifold
- Exhaust system
- Fuel system
- Ignition timing
- RPM
- Engine management
Compression ratio is important, but it is not a standalone horsepower calculator.
Compression Ratio and Torque
Compression ratio can have a significant relationship with torque.
Increasing compression can increase combustion efficiency and potentially improve torque, particularly in naturally aspirated applications.
Higher compression may also improve throttle response.
However, torque is strongly influenced by cylinder filling and airflow.
A high-compression engine with poor airflow may produce less power than a lower-compression engine with excellent cylinder-head and intake design.
Compression Ratio and Thermal Efficiency
Compression ratio is directly related to the theoretical efficiency of the ideal Otto cycle.
A simplified relationship is:
η = 1 − 1/r^(γ−1)
Where:
- η = ideal thermal efficiency
- r = compression ratio
- γ = ratio of specific heats
As compression ratio increases, theoretical thermal efficiency increases.
Real engines are more complicated because of:
- Heat losses
- Friction
- Pumping losses
- Combustion losses
- Valve timing
- Exhaust energy
- Cooling requirements
Nevertheless, the relationship explains why compression ratio is important for engine efficiency.
Compression Ratio and Fuel Economy
Higher compression can improve thermal efficiency and potentially reduce fuel consumption under appropriate operating conditions.
Modern gasoline engines often use relatively high compression ratios to improve efficiency.
However, real-world fuel economy depends on much more than compression ratio.
Important factors include:
- Vehicle weight
- Aerodynamics
- Transmission gearing
- Tire pressure
- Driving conditions
- Engine friction
- Engine calibration
- Vehicle speed
Therefore, increasing compression does not automatically guarantee better fuel economy.
Compression Ratio and Fuel Octane
Higher compression can increase the tendency toward knock under certain conditions.
Fuel octane is therefore an important consideration.
Higher-octane fuel generally offers greater resistance to knock.
However, compression ratio is not the only factor determining fuel requirements.
Knock tendency is also influenced by:
- Intake temperature
- Ignition timing
- Boost pressure
- Combustion-chamber design
- Engine load
- Air-fuel mixture
- Engine speed
- Cooling
This is why fuel selection should be based on the entire engine combination.
What Is Engine Knock?
Knock, commonly called detonation, is abnormal combustion.
Normal spark-ignition combustion begins with the spark initiating a controlled flame front.
Under certain conditions, part of the remaining mixture can auto-ignite.
This can create extremely rapid pressure changes.
Severe knock can damage:
- Pistons
- Rings
- Bearings
- Spark plugs
- Head gaskets
- Cylinder heads
Proper engine design and calibration are essential.
Compression Ratio and Ignition Timing
Ignition timing determines when the spark occurs relative to piston position.
Increasing compression can change the engine’s sensitivity to ignition timing.
Too much ignition advance can increase knock risk.
Modern engines may use knock sensors and electronic control systems to adjust ignition timing.
A compression calculator determines geometric compression; it does not determine the correct ignition map.
Compression Ratio and Air-Fuel Mixture
Air-fuel ratio can influence combustion temperature and knock behavior.
Engine calibration must therefore account for:
- Engine load
- RPM
- Fuel type
- Intake temperature
- Boost
- Compression ratio
A compression calculator is only one part of the tuning process.
Static Compression Ratio
Static compression ratio is the conventional geometric compression ratio.
It uses the full piston stroke.
Formula:
SCR = (Swept Volume + Clearance Volume) ÷ Clearance Volume
Most online compression calculators calculate this value.
Dynamic Compression Ratio
Dynamic compression ratio considers valve timing.
The intake valve often remains open after the piston reaches BDC.
During this portion of piston travel, the cylinder may not be undergoing the same effective compression process assumed by the static geometric calculation.
Dynamic compression therefore considers the intake valve closing point.
This can be useful when matching compression ratio and camshaft design.
Why Camshaft Selection Matters
Consider two engines:
Engine A
- 10.5:1 static compression
- Mild camshaft
- Early intake closing
Engine B
- 10.5:1 static compression
- Large performance camshaft
- Later intake closing
Both have the same static compression ratio.
But their dynamic behavior can be substantially different.
This is why engine builders should not select camshaft and compression independently.
Compression Ratio and Naturally Aspirated Engines
Naturally aspirated engines can benefit significantly from increased compression.
Without forced induction, higher compression can improve the amount of useful energy extracted from the combustion process.
However, the correct compression ratio depends on:
- Fuel
- Camshaft
- Cylinder head
- Intake
- Exhaust
- RPM
- Combustion chamber
- Engine management
A street engine may require a different approach from a competition engine.
Compression Ratio and Turbocharged Engines
Turbocharged engines introduce additional pressure into the intake system.
A turbocharger compresses incoming air, increasing the mass of air entering the cylinder.
This means compression ratio must be evaluated together with:
- Boost pressure
- Intercooling
- Intake temperature
- Fuel octane
- Ignition timing
- Engine speed
- Combustion-chamber design
Modern turbo engines demonstrate that relatively high compression ratios can work successfully when the complete system is engineered appropriately.
Compression Ratio and Supercharged Engines
Supercharged engines also operate with increased intake pressure.
Different supercharger designs produce different boost characteristics.
For example:
- Positive-displacement superchargers can produce strong low-speed boost.
- Centrifugal superchargers generally increase boost with engine RPM.
The appropriate compression ratio depends on the intended operating range and complete engine design.
Does Boost Change Static Compression Ratio?
No.
An engine with a geometric compression ratio of:
10:1
remains a 10:1 engine when boost is added.
Boost changes the intake pressure entering the cylinder.
It does not physically change the geometric relationship between BDC and TDC.
However, boost dramatically changes cylinder operating conditions.
Compression Ratio and Cylinder Pressure
Compression ratio should not be confused with cylinder pressure.
An engine can have:
10:1 compression
and produce different cylinder pressures depending on:
- Camshaft timing
- Engine speed
- Intake pressure
- Volumetric efficiency
- Temperature
- Throttle position
Therefore, compression ratio is not a direct pressure measurement.
Compression Ratio Versus Compression Test

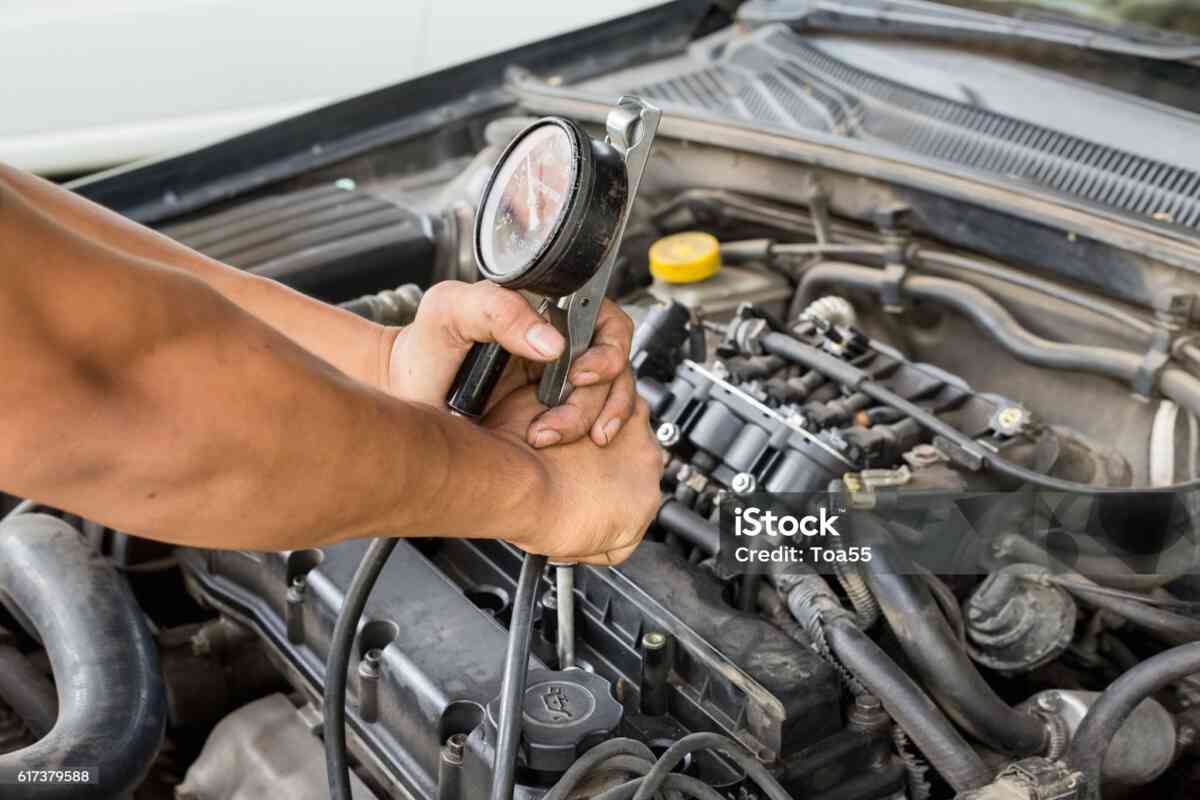

A compression test measures pressure using a gauge.
For example:
180 psi
is a compression-test result.
By comparison:
10:1
is a geometric compression ratio.
These measurements are related but fundamentally different.
A large camshaft can reduce measured cranking compression while the engine still has a high static compression ratio.
Compression Ratio and Engine Displacement
Engine displacement is determined by bore, stroke, and cylinder count.
Compression ratio is determined by swept volume and clearance volume.
Increasing displacement through a larger bore or longer stroke generally increases swept volume.
If clearance volume stays constant, compression ratio will increase.
This is why stroker and big-bore engine builds should be evaluated with a compression calculator.
Bore Changes
Suppose an engine changes from:
86 mm bore
to:
88 mm bore
The swept volume increases.
If clearance volume does not change proportionally, compression ratio will change.
Bore increases can also affect:
- Piston diameter
- Cylinder-wall thickness
- Ring selection
- Head-gasket bore
- Combustion-chamber relationship
Therefore, the calculator should be updated after a bore change.
Stroke Changes
Increasing stroke increases swept volume.
For example:
Original:
80 mm
New:
90 mm
The longer stroke increases displacement and can increase compression ratio if clearance volume remains unchanged.
But stroke changes can also affect:
- Piston position
- Rod ratio
- Piston speed
- Deck height
- Mechanical clearances
A compression calculator is useful, but mechanical verification remains necessary.
Compression Ratio and Cylinder Head Milling
Milling the cylinder head can reduce combustion-chamber volume.
Reducing chamber volume generally increases compression.
For example:
Original chamber:
60 cc
After machining:
56 cc
The four-cc reduction can make a meaningful difference.
However, head machining can also change other engine dimensions.
Always evaluate the complete geometry.
Compression Ratio and Block Decking
Block decking changes the relationship between piston crown and cylinder-head deck.
This can alter:
- Deck clearance
- Compression ratio
- Quench
- Piston-to-head clearance
Therefore, compression should be recalculated after block machining.
Compression Ratio and Quench
Quench refers to the close-clearance region between the piston and cylinder head.
Appropriate quench can promote turbulence and improve combustion behavior.
However, clearance must remain appropriate for the engine’s mechanical conditions.
A compression calculator cannot determine whether the piston will physically contact the head.
That requires mechanical measurements.
Compression Ratio and Piston-to-Valve Clearance
When increasing compression with a dome piston or changing the camshaft, piston-to-valve clearance should be checked.
This is particularly important with:
- High-lift camshafts
- Large valves
- Aggressive valve timing
- Domed pistons
- Modified cylinder heads
Compression ratio and mechanical clearance are separate calculations.
Both are essential.
Compression Ratio in Classic Cars
Classic engines can benefit from compression-ratio calculations because modern replacement parts often differ from original components.
A restoration may use:
- Modern pistons
- Replacement heads
- Different gaskets
- Different camshafts
- Machined blocks
The resulting compression ratio may therefore differ substantially from the original factory specification.
Compression Ratio in Motorcycles
The same fundamental formula applies to motorcycle engines.
A motorcycle compression-ratio calculation can use:
- Bore
- Stroke
- Chamber volume
- Piston volume
- Gasket dimensions
- Deck clearance
Because motorcycle engines often operate at high RPM, compression ratio should be evaluated alongside camshaft timing, fuel, and operating conditions.
Compression Ratio in Diesel Engines
Diesel engines use compression ignition rather than conventional spark ignition.
They commonly use higher compression ratios.
The geometric formula remains useful:
CR = Total Volume at BDC ÷ Clearance Volume at TDC
However, diesel combustion is governed by different principles involving:
- Injection timing
- Injection pressure
- Air movement
- Fuel atomization
- Combustion chamber design
- Turbocharging
Therefore, diesel compression calculations should be interpreted differently from gasoline-engine calculations.
How to Use an Engine Compression Ratio Calculator Correctly
A practical procedure is:
Step 1: Measure Bore
Use the actual finished cylinder bore when possible.
Step 2: Verify Stroke
Confirm crankshaft stroke.
Step 3: Determine Chamber Volume
Use manufacturer specifications or actual measurements.
Step 4: Determine Piston Volume
Record dish, dome, and valve-relief specifications.
Step 5: Determine Gasket Volume
Use gasket bore and compressed thickness.
Step 6: Determine Deck Clearance
Measure piston position at TDC.
Step 7: Enter the Data
Input the values into the calculator.
Step 8: Review the Result
Check the calculated static compression ratio.
Step 9: Compare Alternatives
Change one component at a time to evaluate different combinations.
Step 10: Verify During Assembly
Use actual measurements for the final engine.
Common Calculator Mistakes
Mixing Metric and Imperial Units
Always use compatible units.
For example, do not enter:
- Bore in inches
- Stroke in millimeters
unless the calculator specifically handles the conversion.
Forgetting Piston Volume
Piston dish and dome volume can significantly affect the result.
Ignoring Valve Reliefs
Valve reliefs can add volume to the piston crown.
Ignoring Gasket Volume
The gasket occupies real physical space.
Ignoring Deck Clearance
Deck volume can affect final compression.
Confusing Static and Dynamic Compression
Static compression is geometric.
Dynamic compression includes valve timing.
How Accurate Is an Online Compression Calculator?
The mathematical calculation can be highly accurate.
The main source of error is usually the input data.
If you enter estimated values, the result is an estimate.
If you enter accurately measured dimensions, the result can be highly useful for engine planning.
For professional engine builds, actual measurements should always be preferred.
Why Engine Builders Should Calculate Compression Before Assembly
Calculating compression before assembling the engine can prevent expensive mistakes.
For example, you may discover that your selected combination produces:
12.8:1
when you intended:
10.5:1
This discovery is much easier to deal with before final assembly.
You can change:
- Pistons
- Cylinder heads
- Gaskets
- Deck dimensions
before completing the build.
Comparing Engine Configurations
A calculator makes “what-if” analysis easy.
For example:
Configuration A
- 9.5:1
- Mild camshaft
- Pump gasoline
- Daily driving
Configuration B
- 10.5:1
- Medium camshaft
- Higher-octane fuel
- Street performance
Configuration C
- 12.0:1
- Aggressive camshaft
- Specialized fuel
- Competition use
The best choice depends on the intended application.
Is Higher Compression Always Better?
No.
Higher compression can increase efficiency and power potential, but it can also increase knock sensitivity and fuel requirements.
The objective should be an appropriate compression ratio rather than the highest possible ratio.
Can a Turbo Engine Use High Compression?
Yes.
Modern turbocharged engines can use relatively high compression ratios because of improvements in:
- Fuel injection
- Intercooling
- Knock control
- Engine management
- Combustion chambers
- Variable valve timing
However, the correct ratio depends on the complete engine system.
Can Compression Ratio Improve Fuel Economy?
It can.
Higher compression can increase theoretical thermal efficiency.
But real-world fuel economy depends on:
- Vehicle design
- Driving conditions
- Engine calibration
- Transmission
- Weight
- Aerodynamics
Compression ratio is one factor among many.
Does Higher Compression Require Higher-Octane Fuel?
Not always.
Fuel requirement depends on the entire combination.
A high-compression naturally aspirated engine may have different fuel requirements from a lower-compression turbo engine operating at substantial boost.
Always consider:
- Compression
- Boost
- Timing
- Temperature
- Load
- Fuel characteristics
together.
Can a Compression Calculator Calculate Horsepower?
No.
An Engine Compression Ratio Calculator calculates geometric compression ratio.
Horsepower requires information about factors such as:
- Airflow
- Volumetric efficiency
- RPM
- Torque
- Fuel
- Engine design
A compression ratio calculator can help with engine planning but cannot accurately predict horsepower by itself.
Can a Compression Calculator Calculate Torque?
No.
Compression ratio influences torque, but torque depends on many additional factors.
A dedicated engine torque calculator or dyno measurement is required for more direct torque analysis.
Can Compression Ratio Be Calculated From Engine Displacement?
Not by itself.
You need clearance volume as well.
For example, knowing an engine is:
2,000 cc
does not tell you whether it has:
- 8:1 compression
- 9:1 compression
- 10:1 compression
- 11:1 compression
The clearance volume determines the final ratio.
Why a Free Engine Compression Ratio Calculator Is Useful
A free calculator provides several practical advantages.
Fast
Calculations can be completed in seconds.
Convenient
No manual formula work is required for every combination.
Useful for Planning
Engine builders can test different components.
Educational
Students can understand how engine geometry works.
Cost-Effective
A free tool can be used before purchasing expensive engine components.
Best Practices for Engine Builders
For the most useful results:
Measure actual dimensions whenever possible.
Use consistent units.
Verify piston volume specifications.
Use compressed gasket thickness.
Measure combustion chamber volume if accuracy matters.
Measure deck clearance at true TDC.
Recalculate after machining.
Distinguish static compression from dynamic compression.
Consider fuel and camshaft selection.
Check mechanical clearances separately.
Final Conclusion
The Engine Compression Ratio Calculator is an essential free tool for understanding and planning internal combustion engines.
Compression ratio is determined by the relationship between swept volume and clearance volume:
Compression Ratio = (Swept Volume + Clearance Volume) ÷ Clearance Volume
The calculation is simple, but obtaining accurate inputs requires attention to detail.
Important variables include:
- Bore
- Stroke
- Combustion chamber
- Piston dish
- Piston dome
- Valve reliefs
- Head gasket
- Deck clearance
Compression ratio can affect:
- Horsepower
- Torque
- Thermal efficiency
- Fuel economy
- Fuel requirements
- Knock sensitivity
- Engine tuning
- Overall engine performance
But compression ratio should never be viewed in isolation.
A successful engine combination must balance compression with camshaft timing, cylinder-head design, fuel quality, ignition timing, airflow, boost pressure, cooling, and mechanical clearances.
For DIY builders, mechanics, automotive students, restoration enthusiasts, and professional engine builders, a free Engine Compression Ratio Calculator provides an easy way to explore these relationships.
The most effective approach is to calculate early, compare multiple configurations, verify actual measurements during engine assembly, and tune the finished engine for its intended fuel and operating conditions.
A carefully calculated compression ratio can help turn a collection of engine components into a properly matched combination designed for efficiency, performance, and reliability.
