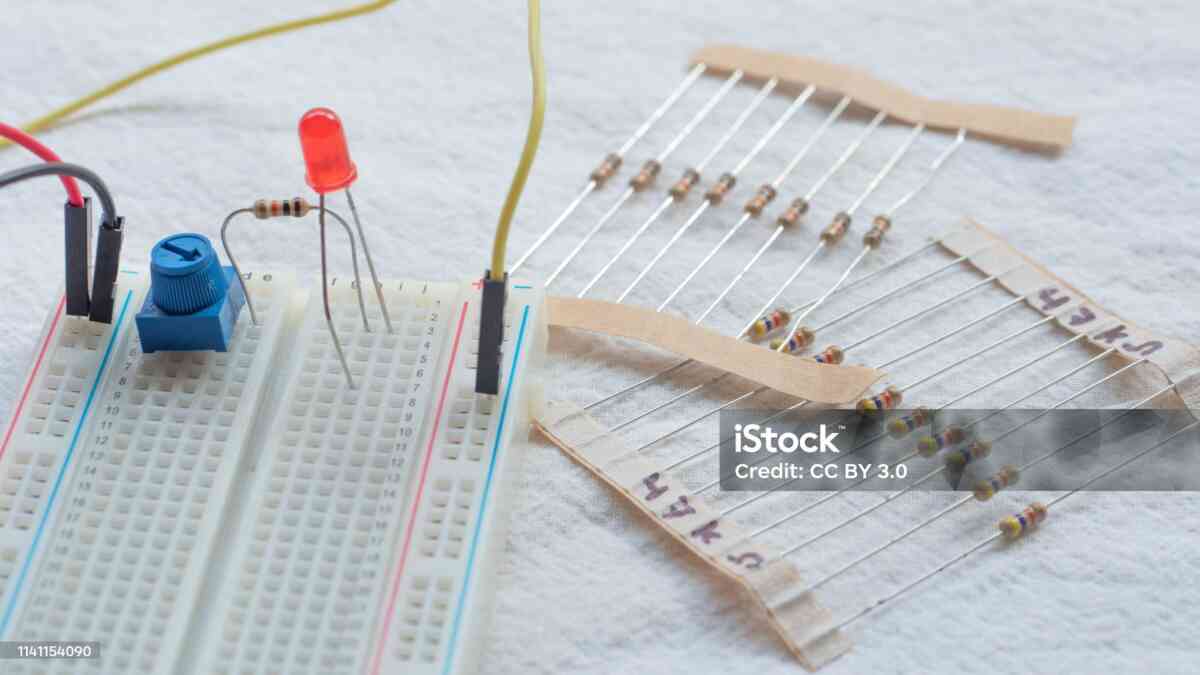

Introduction

Designing a simple LED circuit may look easy: connect a power source to an LED and make it light.

The problem is that an LED is not an ordinary lamp.

An LED is a semiconductor device whose current can change significantly when its voltage changes. Connecting an LED directly to a voltage source can therefore result in excessive current and permanent damage.

The most common solution is a series resistor.

A resistor limits current and protects the LED from excessive electrical stress.

A FREE TOOLS LED Resistor Calculator makes the process much easier by automatically calculating the resistance required for a particular combination of supply voltage, LED forward voltage, and target current.

The basic formula is:

R=VS−VFIR=frac{V_S-V_F}{I}

Understanding this formula is valuable because it allows you to design LED circuits even when you do not have access to an online calculator.

This article explains how the calculation works, how to choose realistic values, how to calculate resistor wattage, how to design circuits using multiple LEDs, and how to troubleshoot common problems.

What Does an LED Resistor Calculator Do?

The purpose of an LED resistor calculator is to determine how much resistance should be placed in series with an LED.

The calculator generally requires:

• supply voltage
• LED forward voltage
• desired LED current

The result is the theoretical resistance.

Many advanced calculators also provide:

• resistor power
• recommended standard resistor value
• actual current using the selected standard resistor
• voltage across the resistor
• total circuit power

This can make the tool useful for both beginners and experienced electronics designers.

Why Current Limiting Is Necessary

The defining feature of an LED is its nonlinear current-voltage characteristic.

A small change in voltage can cause a large change in current.

A power supply, however, may provide a relatively fixed voltage.

Without a current-limiting element, the LED may draw much more current than intended.

The resistor creates a controlled voltage drop.

Suppose a 5 V supply powers an LED whose forward voltage is approximately 2 V.

The resistor receives:

5−2=3V5-2=3V

If you want 10 mA:

R=30.01R=frac{3}{0.01} R=300ΩR=300Omega

The resistor therefore establishes the approximate operating current.

Understanding the Three Main Inputs

1. Supply Voltage

This is the voltage available to the LED circuit.

Typical values include:

• 1.5 V
• 3 V
• 3.3 V
• 5 V
• 9 V
• 12 V
• 24 V

The supply should be measured or determined from reliable specifications.

2. Forward Voltage

Forward voltage is the voltage drop across the LED under a specified current and temperature.

It varies among LED types.

For example, a red LED may have a forward voltage around 2 V, while a blue or white LED may be around 3 V or more.

3. Desired Current

The target current determines how much current flows through the LED.

The maximum current listed on a datasheet should not automatically become the target current.

Often, a lower current provides enough brightness.

A Complete Calculation Example

Suppose you have:

• 9 V supply
• 2.1 V LED forward voltage
• 15 mA target current

Convert current:

15mA=0.015A15mA=0.015A

Calculate voltage across resistor:

VR=9−2.1=6.9VV_R=9-2.1=6.9V

Calculate resistance:

R=6.90.015R=frac{6.9}{0.015} R=460ΩR=460Omega

A standard resistor of 470 Ω could be selected.

The actual current becomes:

I=6.9470I=frac{6.9}{470} I≈14.7mAIapprox14.7mA

The LED should receive approximately 14.7 mA under the assumed conditions.

Calculating Resistor Power

The resistor converts electrical energy into heat.

For the example above:

P=VRIP=V_RI P=6.9(0.0147)P=6.9(0.0147) P≈0.101WPapprox0.101W

A resistor rated above this value should be selected.

A 1/4 W resistor provides significantly more capacity than 0.101 W.

Why You Should Not Always Use the Exact Calculated Value

Suppose the calculator returns 460 Ω.

You may not have a 460 Ω resistor.

A 470 Ω resistor is widely available and produces slightly less current.

That is often preferable to selecting a smaller value such as 450 Ω or 430 Ω.

The higher value reduces LED current.

Standard Resistor Values

Resistors are manufactured in preferred series.

Common values include:

• 100 Ω
• 120 Ω
• 150 Ω
• 180 Ω
• 220 Ω
• 270 Ω
• 330 Ω
• 390 Ω
• 470 Ω
• 560 Ω
• 680 Ω
• 820 Ω
• 1 kΩ
• 1.2 kΩ
• 1.5 kΩ
• 2.2 kΩ
• 3.3 kΩ
• 4.7 kΩ
• 10 kΩ

The precise available values depend on the resistor series and tolerance.

LED Resistor Calculator and Resistor Tolerance

Suppose a resistor is marked:

330 Ω ±5%

Its actual resistance could be approximately between:

313.5Ω313.5Omega

and:

346.5Ω346.5Omega

Therefore, calculated LED current is an estimate.

For ordinary LED indicators, this tolerance is normally acceptable.

For precision circuits, use tighter-tolerance components and perform worst-case calculations.

Calculating Current From a Known Resistor

Sometimes you already have a resistor and want to know the LED current.

Rearrange the formula:

I=VS−VFRI=frac{V_S-V_F}{R}

For example:

• supply = 12 V
• LED forward voltage = 2 V
• resistor = 1 kΩ

I=12−21000I=frac{12-2}{1000} I=0.010AI=0.010A

Therefore:

I=10mAI=10mA

This reverse calculation is useful when selecting components from your parts collection.

Calculating LED Forward Voltage From a Circuit

You can also rearrange the equation:

VF=VS−IRV_F=V_S-IR

For example:

• supply = 5 V
• current = 10 mA
• resistor = 330 Ω

Voltage across resistor:

VR=IRV_R=IR VR=0.01(330)V_R=0.01(330) VR=3.3VV_R=3.3V

Therefore:

VF=5−3.3V_F=5-3.3 VF=1.7VV_F=1.7V

This can help analyze an existing circuit.

Three Common LED Circuit Configurations

Single LED

The simplest arrangement is:

Supply → resistor → LED → ground

This is ideal for:

• indicator lights
• prototypes
• simple electronics
• educational projects

Multiple LEDs in Series

Multiple LEDs can be placed in series.

The forward voltages add.

For example:

• LED 1 = 2 V
• LED 2 = 2 V
• LED 3 = 2 V

Total:

6V6V

With a 12 V supply and 10 mA:

R=12−60.01R=frac{12-6}{0.01} R=600ΩR=600Omega

A nearby standard value might be 620 Ω.

Multiple LEDs in Parallel

Parallel LED circuits need more care.

Even nominally identical LEDs can have different forward voltages.

If they share one resistor, current may not divide equally.

A common solution is to use a separate resistor for each LED branch.

Series LED Calculator Method

For series LEDs:

R=VS−∑VFIR=frac{V_S-sum V_F}{I}

For example:

• supply = 24 V
• four LEDs
• each LED = 2.2 V
• current = 15 mA

Total forward voltage:

4(2.2)=8.8V4(2.2)=8.8V

Voltage across resistor:

24−8.8=15.2V24-8.8=15.2V

Resistance:

R=15.20.015R=frac{15.2}{0.015} R≈1013ΩRapprox1013Omega

A 1.0 kΩ or 1.1 kΩ standard resistor might be considered depending on the desired current and component tolerances.

LED Resistor Calculator for 3.3 V

3.3 V logic systems are common in modern electronics.

Suppose:

• supply = 3.3 V
• red LED = 2.0 V
• current = 5 mA

R=3.3−20.005R=frac{3.3-2}{0.005} R=260ΩR=260Omega

A 270 Ω resistor would be a practical choice.

At 270 Ω:

I=1.3270I=frac{1.3}{270} I≈4.81mAIapprox4.81mA

This is often sufficient for an indicator LED.

LED Resistor Calculator for 5 V

For:

• 5 V supply
• 2 V LED
• 10 mA

R=300ΩR=300Omega

Using 330 Ω:

I=3330I=frac{3}{330} I≈9.09mAIapprox9.09mA

This is a useful example of why the nearest higher standard value can be convenient.

LED Resistor Calculator for 9 V

For:

• 9 V supply
• 2 V LED
• 10 mA

R=9−20.010R=frac{9-2}{0.010} R=700ΩR=700Omega

A standard 750 Ω resistor would reduce current slightly.

A 680 Ω resistor would increase it slightly.

LED Resistor Calculator for 12 V

For:

• 12 V supply
• 2 V LED
• 10 mA

R=1000ΩR=1000Omega

Thus:

1 kΩ is a convenient standard choice.

LED Resistor Calculator for 24 V

Industrial control systems commonly use 24 V.

Suppose:

• supply = 24 V
• LED forward voltage = 2 V
• desired current = 10 mA

R=24−20.01R=frac{24-2}{0.01} R=2200ΩR=2200Omega

The resistor power is:

P=22(0.01)P=22(0.01) P=0.22WP=0.22W

A resistor with a rating comfortably above 0.22 W should be considered.

Why High-Voltage LED Circuits Need Power Analysis

At higher supply voltages, a resistor may dissipate significant power.

For example, the same 10 mA current with a 2 V LED produces different resistor power:

Supply	Resistor voltage	Resistor	Approx. power
5 V	3 V	300 Ω	0.03 W
9 V	7 V	700 Ω	0.07 W
12 V	10 V	1 kΩ	0.10 W
24 V	22 V	2.2 kΩ	0.22 W

As supply voltage increases, the resistor handles more voltage and dissipates more heat.

LED Current Limiting and Safety

Although low-voltage LED circuits are generally simple, component selection still matters.

Avoid:

• shorting the LED
• connecting it directly to a high-current source
• exceeding LED current ratings
• exceeding resistor power ratings
• ignoring supply-voltage variations

For mains-powered projects, additional electrical safety requirements apply. A simple LED resistor calculator does not replace proper isolation, protection, fusing, insulation, or certified power-supply design.

LED Resistor Calculator for Battery Projects

Battery voltage changes during discharge.

Suppose an LED circuit is powered by a battery that ranges from 4.2 V when fully charged to a lower voltage during discharge.

A resistor calculated using only the nominal voltage may not provide constant brightness.

The current changes approximately according to:

I=VBAT−VFRI=frac{V_{BAT}-V_F}{R}

As battery voltage falls, current falls.

This can cause the LED to become dimmer.

For a simple indicator, this may be acceptable.

For constant illumination, consider a current-regulated design.

LED Resistor Calculator for USB

USB-powered electronics commonly use 5 V.

A typical indicator LED might therefore be designed with:

• 5 V supply
• 2 V forward voltage
• 5 mA target current

R=5−20.005R=frac{5-2}{0.005} R=600ΩR=600Omega

A standard 620 Ω resistor would produce approximately:

I=3620I=frac{3}{620} I≈4.84mAIapprox4.84mA

This can provide useful brightness while keeping current relatively low.

Choosing LED Current for Indicator Applications

Many indicator LEDs do not need high current.

A useful starting range may be:

• 2 mA for low-power applications
• 5 mA for many indicators
• 10 mA for brighter indication
• 20 mA where specifically appropriate

The correct value depends on the LED.

Modern high-efficiency components may be very bright at just a few milliamps.

High-Brightness LEDs

The term “high brightness” does not necessarily mean the LED must operate at maximum rated current.

Always examine:

• luminous intensity
• test current
• maximum continuous current
• pulse current
• thermal conditions

The goal should be sufficient brightness, not maximum current.

Why Lower Current Can Be Beneficial

Operating an LED below its maximum current can offer several benefits:

• less heat
• lower energy consumption
• longer potential operating life
• reduced power supply demand
• longer battery life
• less stress on driving electronics

Therefore, an LED resistor calculator is not just about preventing failure. It can also help optimize power consumption.

Resistor Color Codes

If you calculate a resistor value but do not know how to identify the physical component, resistor color codes can help.

For example, a common 330 Ω resistor may use:

• orange
• orange
• brown

depending on tolerance-band configuration.

However, modern components may also use printed SMD markings rather than traditional color bands.

Using a multimeter is often the easiest way to verify an unknown resistor.

Measuring an LED Circuit

After building a circuit, measurements can validate your calculations.

Measure:

1. supply voltage
2. voltage across LED
3. voltage across resistor

You should approximately have:

VS=VR+VFV_S=V_R+V_F

If the voltage measurements do not make sense, check:

• LED polarity
• resistor value
• wiring
• supply voltage
• component condition

LED Polarity

An LED is polarized.

The two terminals are commonly called:

• anode
• cathode

The LED must be connected in the correct direction for normal forward conduction.

A resistor does not have polarity in a conventional DC circuit.

If the LED does not illuminate, reversing the LED is one of the first troubleshooting steps to consider.

Common Problems and Solutions

LED Does Not Light

Possible causes include:

• reversed LED
• broken connection
• incorrect resistor
• insufficient supply voltage
• damaged LED
• faulty power supply

LED Is Too Dim

Possible causes include:

• resistor value too large
• supply voltage too low
• LED forward voltage too high
• poor connection
• incorrect LED specification

LED Burns Out

Possible causes include:

• resistor too small
• no resistor
• excessive supply voltage
• current-source failure
• incorrect wiring

Resistor Gets Very Hot

Possible causes include:

• insufficient resistor wattage
• excessive current
• excessive voltage
• incorrect resistor value

Calculate resistor power to determine whether the component is properly rated.

The Importance of Worst-Case Design

Nominal calculations are useful, but real-world electronics include variation.

Consider:

• minimum and maximum supply voltage
• minimum and maximum LED forward voltage
• resistor tolerance
• temperature
• aging

A robust design evaluates the extremes.

This is particularly important for:

• automotive circuits
• industrial equipment
• battery systems
• outdoor electronics
• high-power LEDs

What Makes a Good LED Resistor Calculator?

A useful calculator should provide more than a single number.

Ideally, it should display:

• calculated resistance
• recommended standard resistance
• expected current
• voltage across resistor
• resistor power
• resistor wattage recommendation

A clear calculator should also explain the formula so users understand what the result means.

Final Checklist

Before building an LED resistor circuit, verify:

• supply voltage
• LED forward voltage
• target current
• resistor resistance
• resistor power rating
• LED polarity
• driver current limits
• supply-voltage range
• thermal conditions

For multiple LEDs, also determine whether the LEDs are arranged in series or parallel.

Frequently Asked Questions

Can I use a 1 kΩ resistor with an LED?

Yes, if the resulting current is suitable for the LED and application. The exact current depends on supply voltage and LED forward voltage.

Is 220 Ω good for an LED?

It can be, but it depends on the supply voltage and LED forward voltage.

What resistor should I use with a 3.3 V LED?

“3.3 V LED” is not enough information. You need the LED’s actual forward-voltage specification and desired current.

What happens if I use a resistor that is too large?

The LED current decreases and the LED may become dimmer.

What happens if the resistor is too small?

LED current increases, potentially causing overheating or permanent damage.

Does a resistor reduce LED brightness?

Yes. Increasing resistance reduces current and usually reduces brightness.

Do LEDs consume voltage or current?

An LED operates with both voltage across it and current through it. The resistor controls the current by developing a voltage drop.

Can I use a resistor calculator for infrared LEDs?

Yes. The same basic resistance equation applies, but you should use the infrared LED’s actual forward-voltage and current specifications.

Conclusion

The LED Resistor Calculator is a practical tool for anyone building circuits with LEDs.

The calculation itself is simple:

R=VS−VFIR=frac{V_S-V_F}{I}

The challenge is selecting realistic values and understanding the limitations of the circuit.

Use the manufacturer’s LED specifications whenever possible, convert units correctly, select a standard resistor value, and verify resistor power.

For simple indicators, a resistor is usually the easiest current-limiting solution. For high-power, high-efficiency, or tightly regulated lighting applications, a constant-current driver may be more appropriate.

Learning how to use an LED Resistor Calculator gives beginners a practical introduction to Ohm’s law while providing experienced makers and engineers with a convenient way to speed up everyday circuit calculations.
